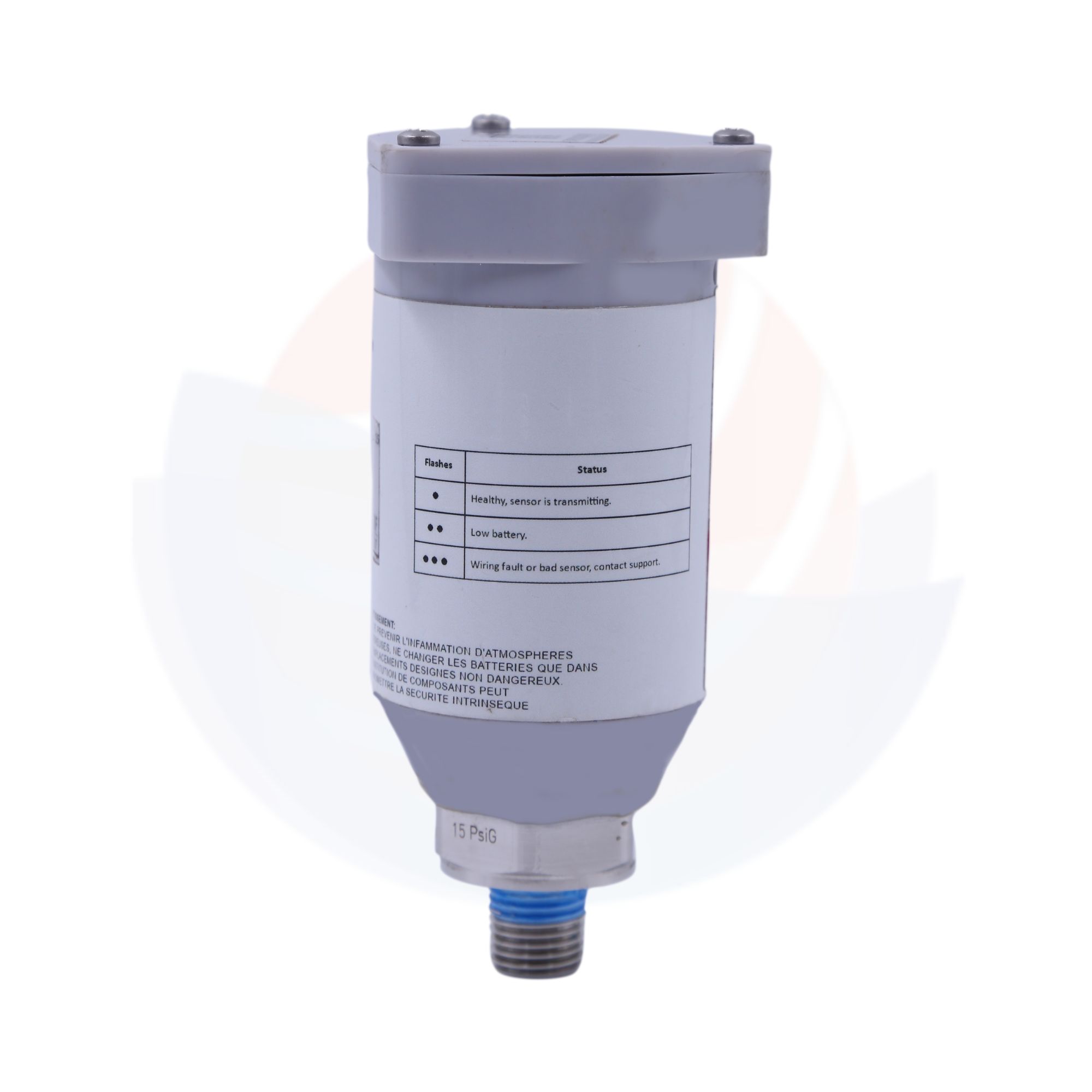

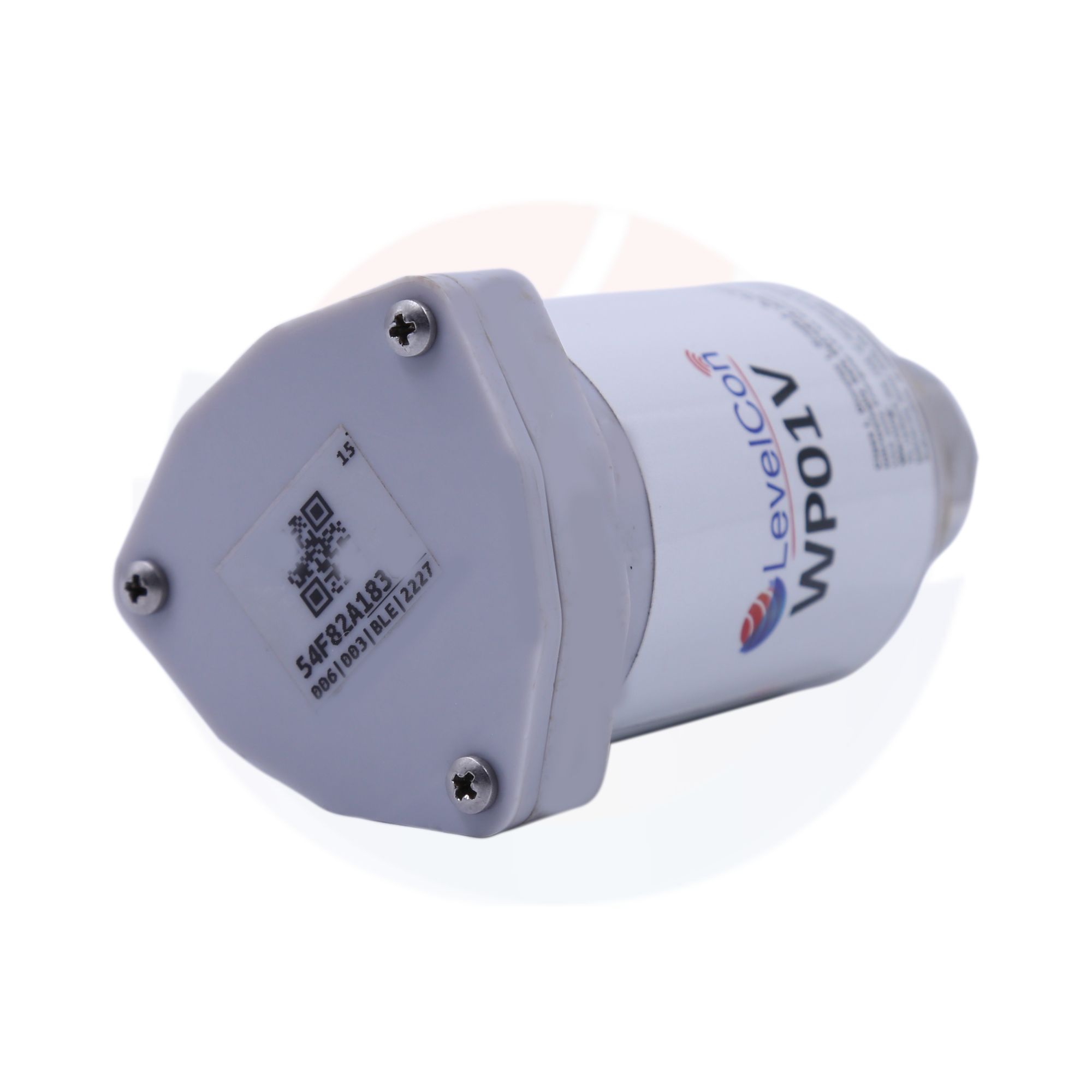

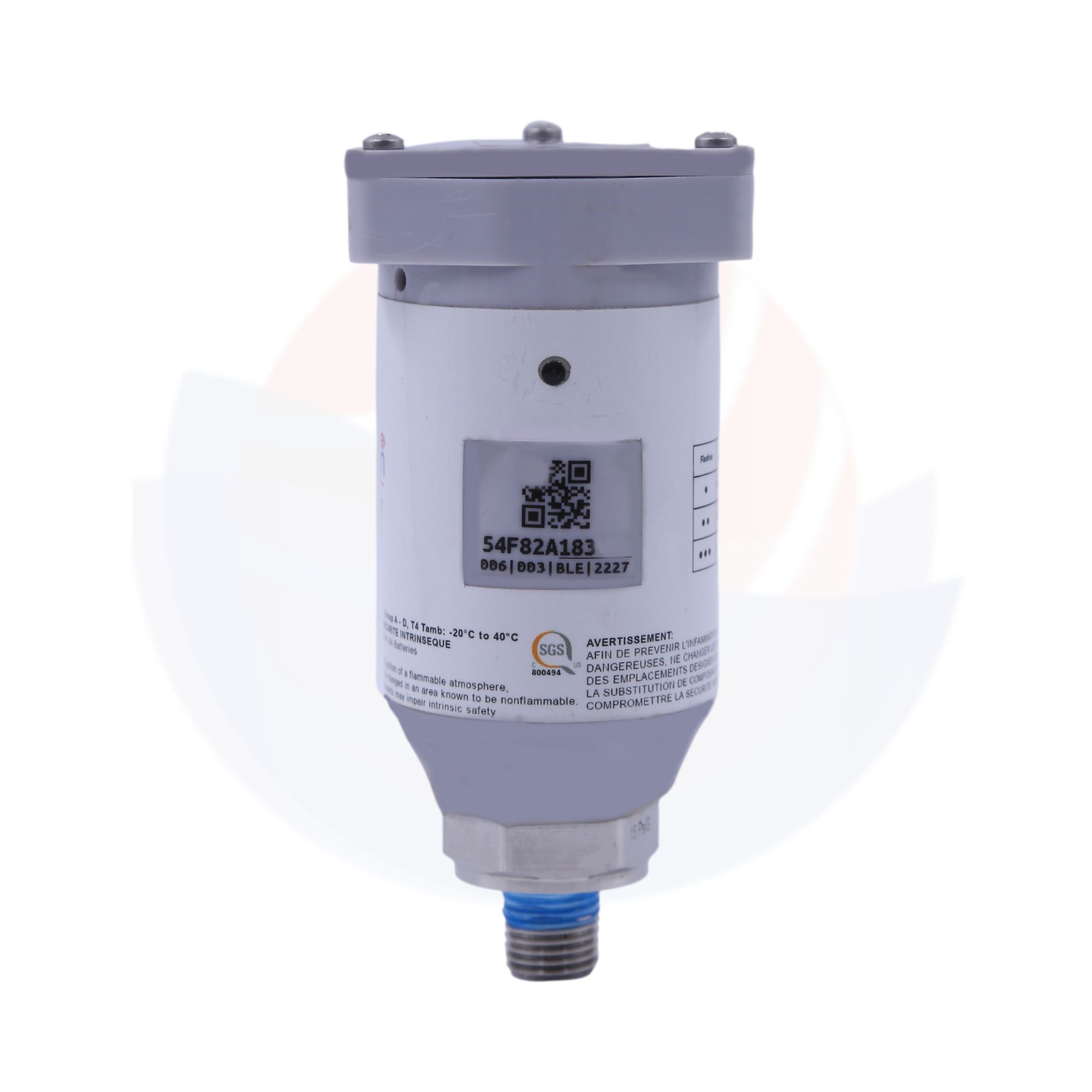

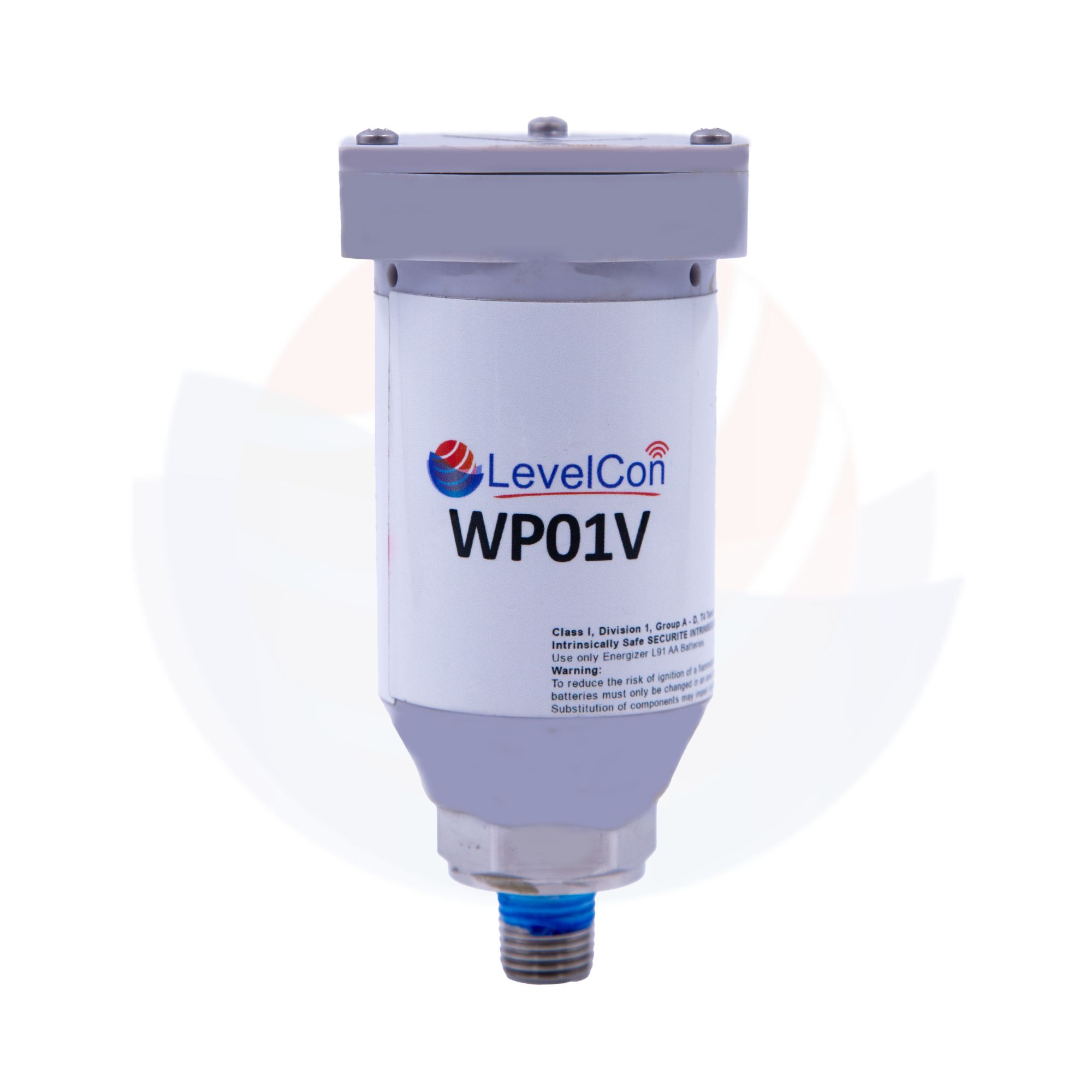

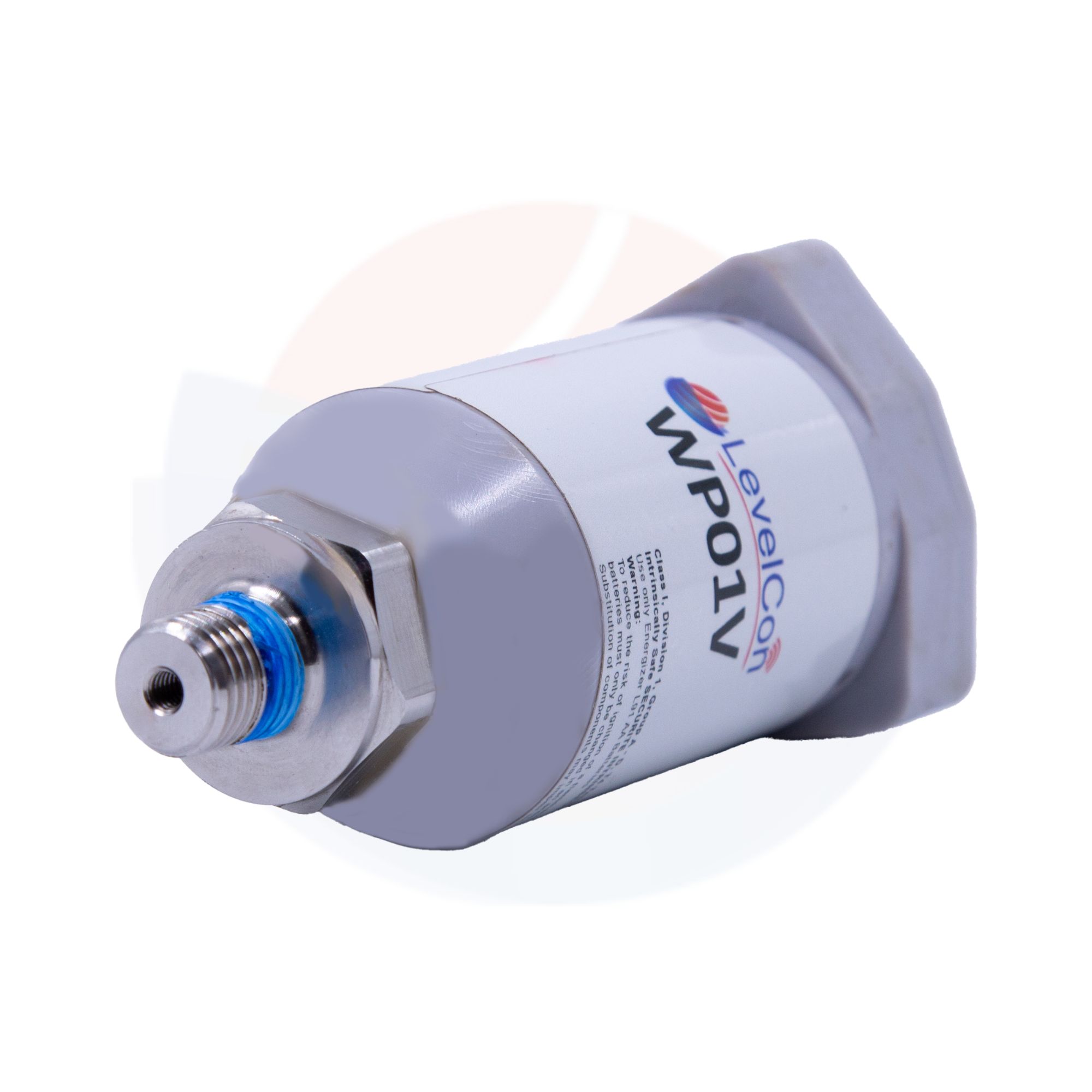

WP01V– External Pressure Sensor
Product Descriptions:
Meet the WP01V—your next-generation solution for tubing, casing, and ground pressure monitoring. Rated C1D1 Group A for Hydrogen, engineered from 316 stainless steel, and built to thrive where other sensors fail. Enjoy near real-time data with a blazing 3-second update rate, 5 years of battery life, and an incredible pressure range of 15–10,000 psi. Need cryogenic performance? We’ve got that covered too.
WP01V: Extreme durability. Exceptional precision. Zero compromises.
Product Information
| Product Dimensions: 113mm H, 46mm Diameter | Operating Temp: 40C to 65C, Storage -50C to 80C | Optional: -40C->85C | |
| Model Number: | |
| Wireless Communication: | Wireless Mesh Communication: Wireless comms to a LevelCon |
| Sensing Technology: | Seal Silicone |
| Operating Voltage: | 3.3 VDC |
| Operating Signal: | I2C |
| Output Signal: | Bluetooth 5.2 Low Energy with Long Range |
| Enclosure Material: |
|
| Range: | 15-10,000 psi |
| Battery Size: | 2x AA (L91) Energizer Ultimate Lithium |
| Tank Connection: | 1/4” MNPT up to 7500 psi, 1/2” MNPT 10k psi+ |
| CPU: | NA |
| Country of Origin | More than 50% assembled in the USA |
Warranty & Support
All our products come with a 1-year limited warranty and lifetime technical support. For any queries or issues, contact our support team.
