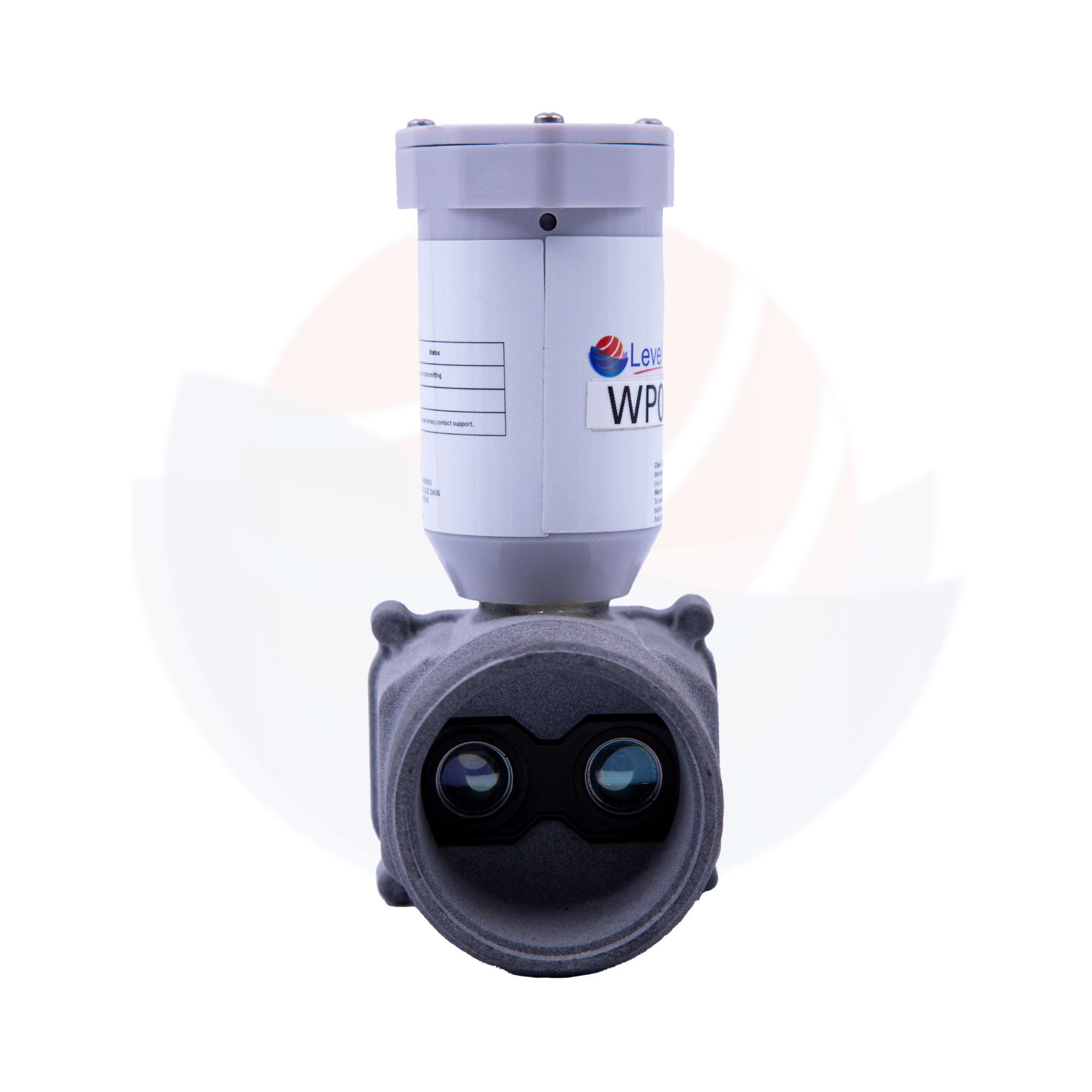

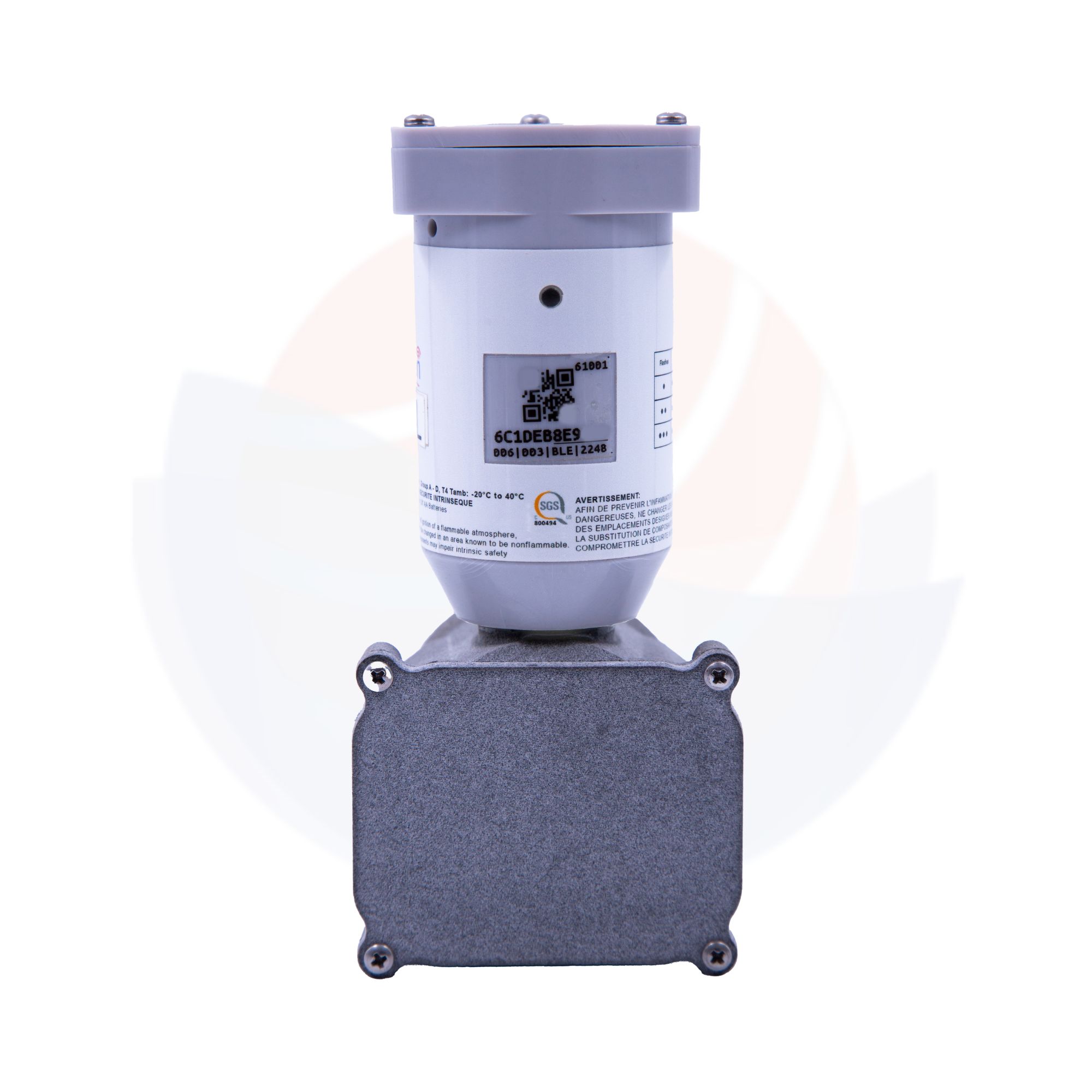

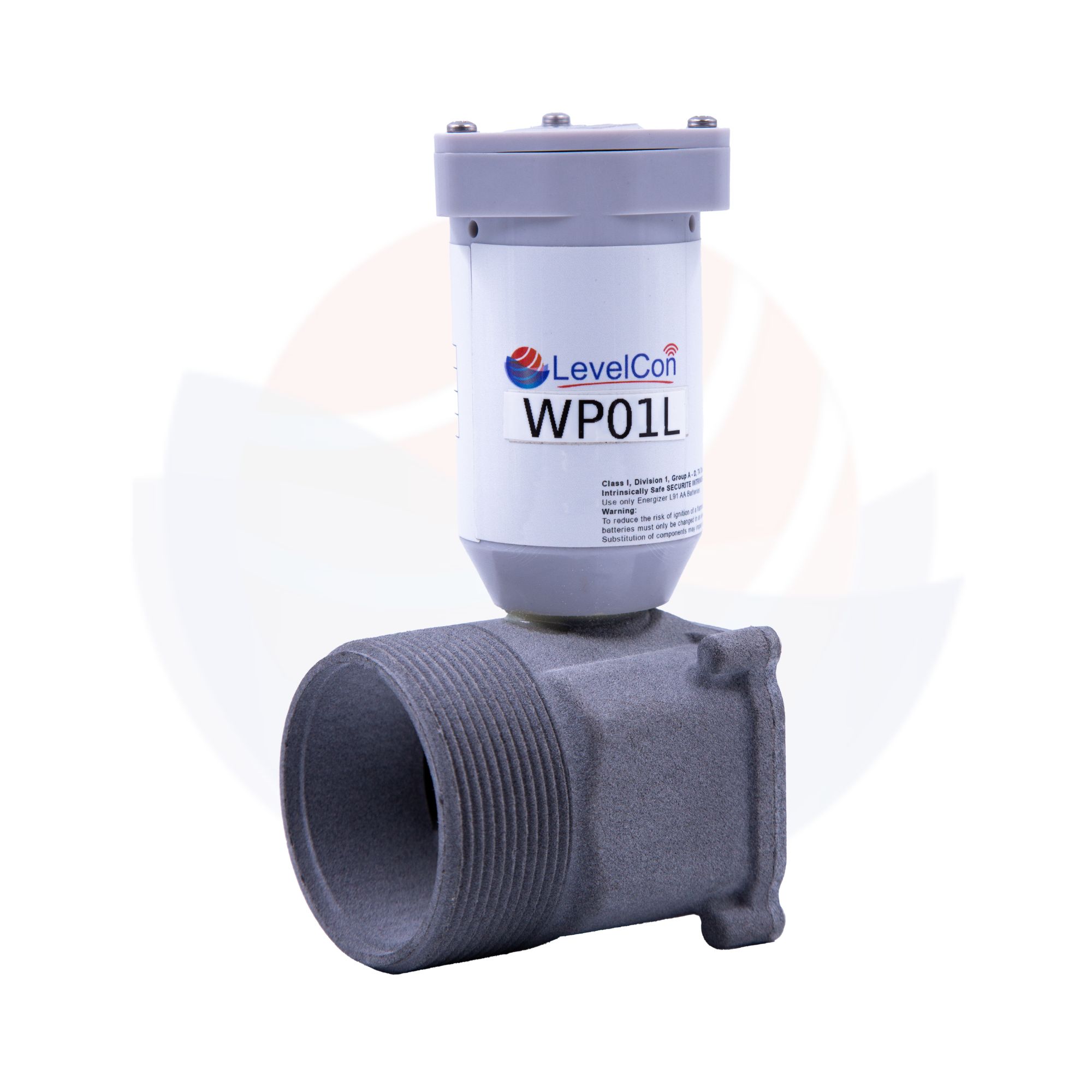

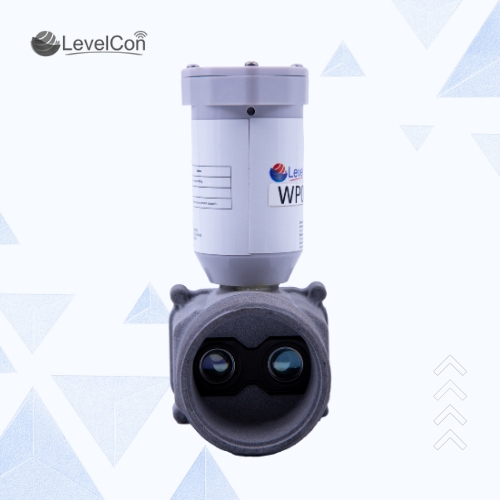

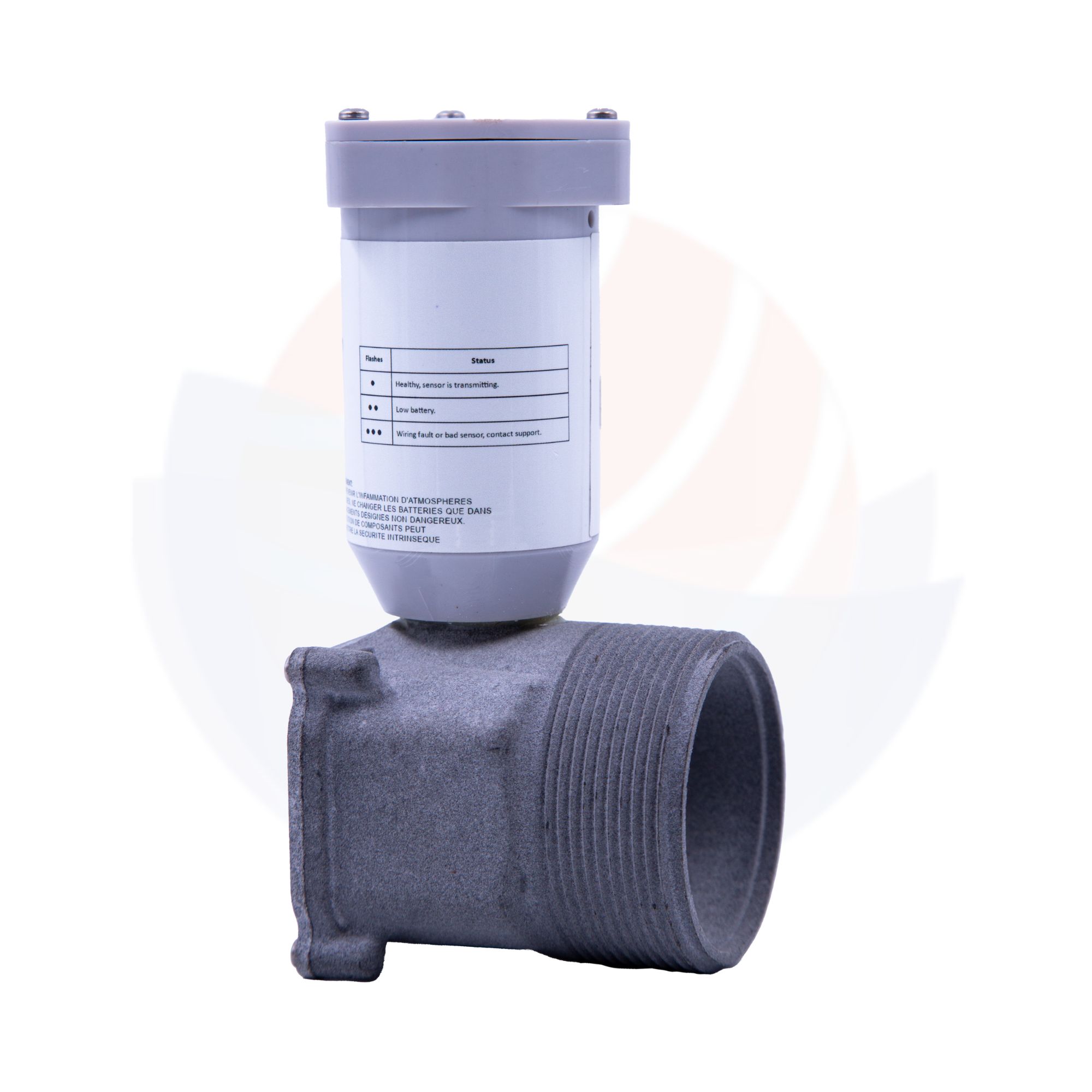

WP01L– Laser Level Sensor
WP01L– Laser Level Sensor
Categories: Wireless Sensors
Typical Industries:
Brochure
- Grease Steel Industry
- Water and wastewater
- Agriculture
- Chemical Industry
- Grease Tank Monitoring
- Ag: Seed and Dry Bins
- Liquid Fertilizers
- Liquid Feeds: Molasses and viscous products
Brochure
Product Descriptions:
Struggling to monitor thick or sticky materials? The WP01L Laser Sensor delivers where others fail. Designed for grease, liquid feed, and dry matter bins, this compact, low-power wireless sensor is powered by 2 AA batteries and offers years of reliable, low-cost service.
WP01L: Tough materials. Smart monitoring. No compromises.
Product Information
| Product Dimensions: 141mm H, 67mm W, 46mm Diam. | Operating Temp: 40C to 65C, Storage -50C to 80C | Optional: -40C->85C | |
| Model Number: | |
| Wireless Communication: | Wireless Mesh Communication: Wireless comms to a LevelCon |
| Sensing Technology: | Lidar Light Sensor |
| Operating Voltage: | 3.6 VDC |
| Operating Signal: | I2C |
| Output Signal: | Bluetooth 5.2 Low Energy with Long Range |
| Enclosure Material: |
|
| Range: | 0-40 meters (product depending) |
| Battery Size: | 2x AA (L91) Energizer Ultimate Lithium |
| Tank Connection: | 2” NPT process connection |
| CPU: | NA |
| Country of Origin | More than 50% assembled in the USA |
Warranty & Support
All our products come with a 1-year limited warranty and lifetime technical support. For any queries or issues, contact our support team.
