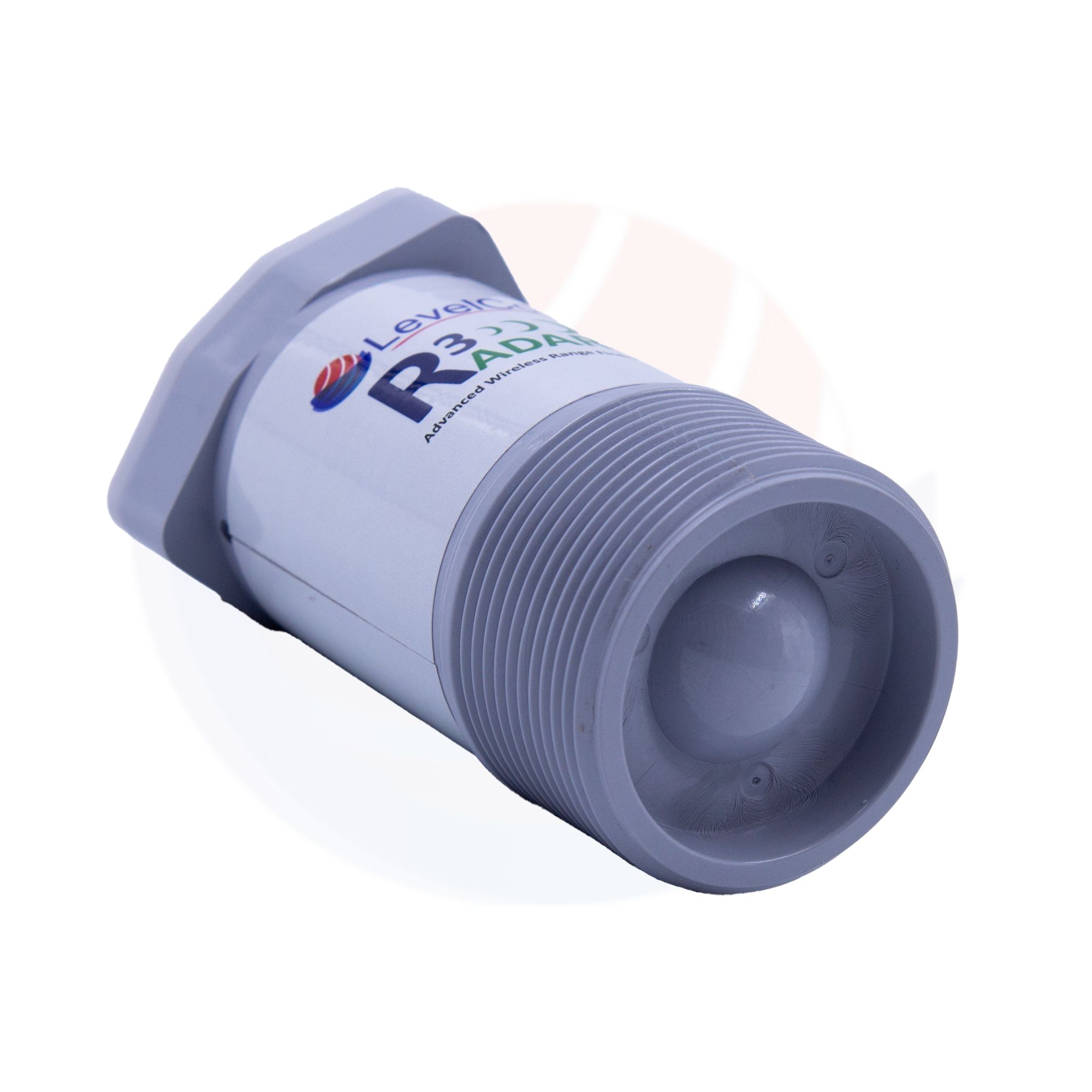

Radar R3
Radar R3
Categories: Wireless Sensors
Typical Industries:
Brochure
- Fuel and Lube
- Liquid Feed
- Water and wastewater
- Oil and Gas
- Agriculture
- Chemical Industry
- Fluid tank levels: Fuels, Lubes, Water, Chemicals
- Mobile Totes
- Small Grease tanks
- Fuel Cubes
Brochure
Product Descriptions:
Meet the Radar R3—precision tank level monitoring made simple. Trusted across the oil and gas industry, this wireless 60 GHz radar reaches up to 8 meters, runs for years on 2 AA batteries, and delivers real-time data straight to LevelCon gateways and the user interface. Reliable, low-power, and competitively priced, the Radar R3 keeps your operations flowing smoothly.
Radar R3: Accurate. Wireless. Effortless.
Product Information
| Product Dimensions: 94mm H, 46mm Diameter | Operating Temp: 40C to 65C, Storage -50C to 80C | |
| Model Number: | |
| Wireless Communication: | Wireless Mesh Communication: Wireless comms to a LevelCon |
| Sensor Technology: | Pulse Coherent Radar |
| Operating Voltage: | 2-5.5VDC |
| Operating Signal: | 60 Ghz |
| Output Signal: | Bluetooth 5.2 Low Energy with Long Range |
| Enclosure Material: | Polybutylene Terephthalate + Polycarbonate |
| Range: | .5-8 meters |
| Battery Size: | 2x AA (L91) Energizer Ultimate Lithium |

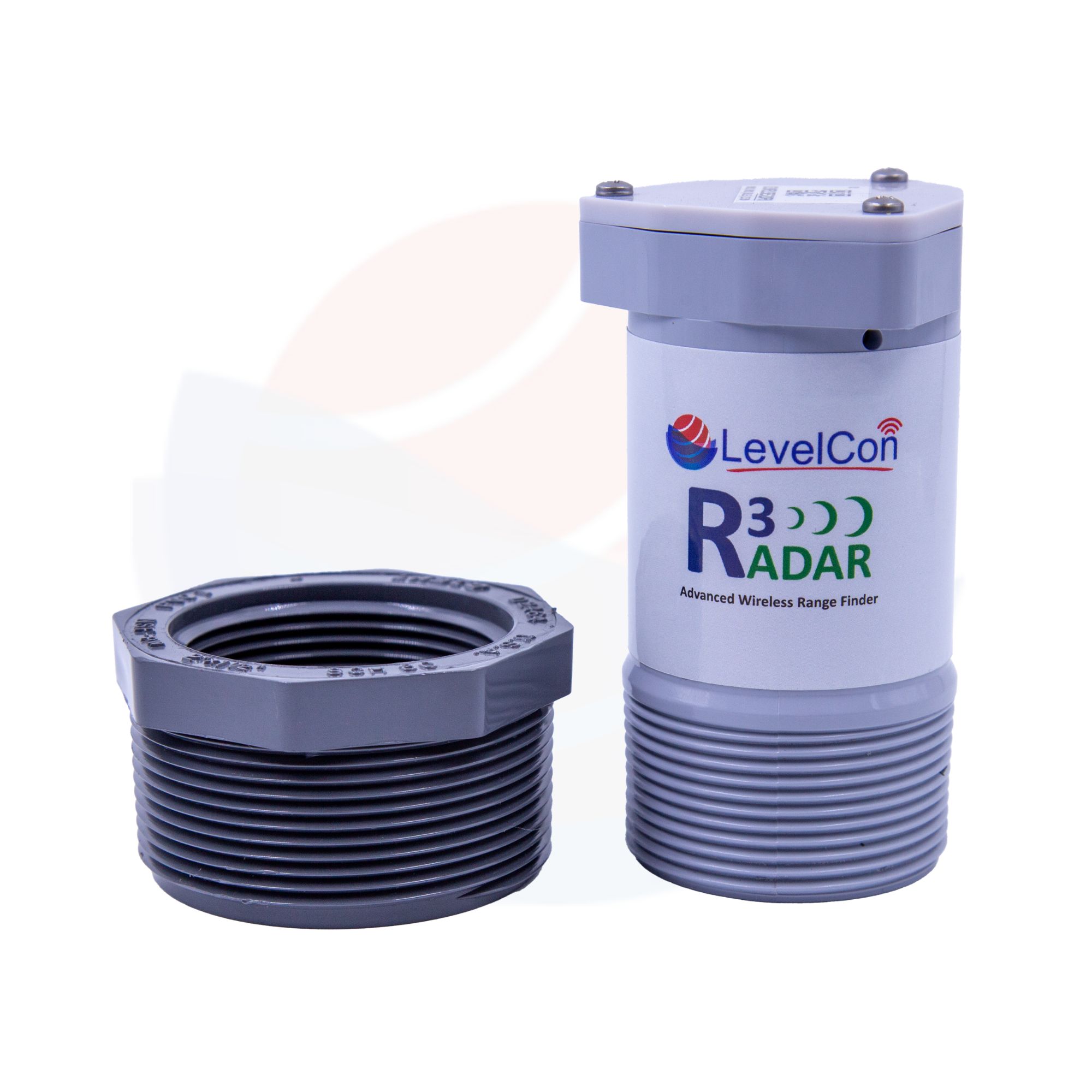

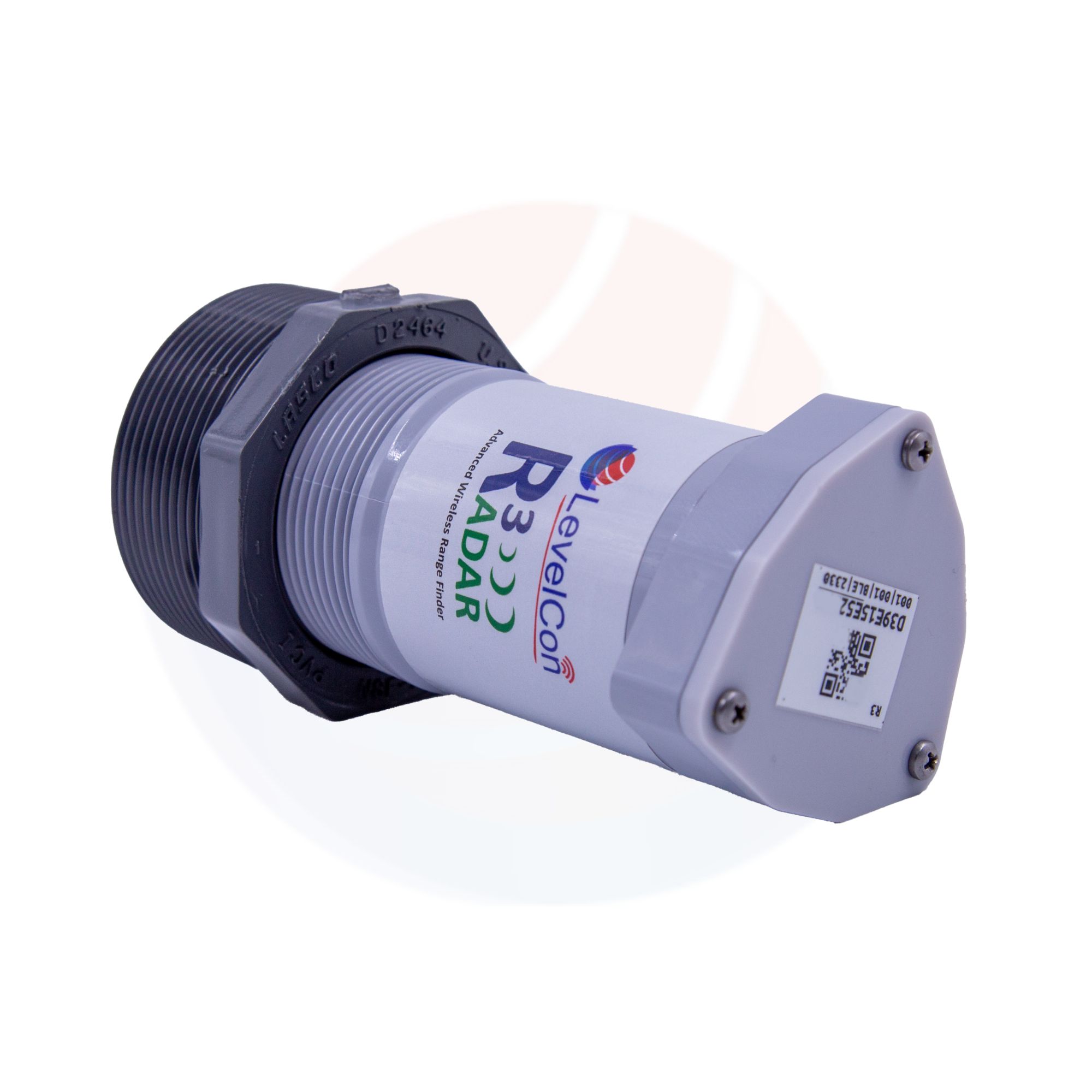

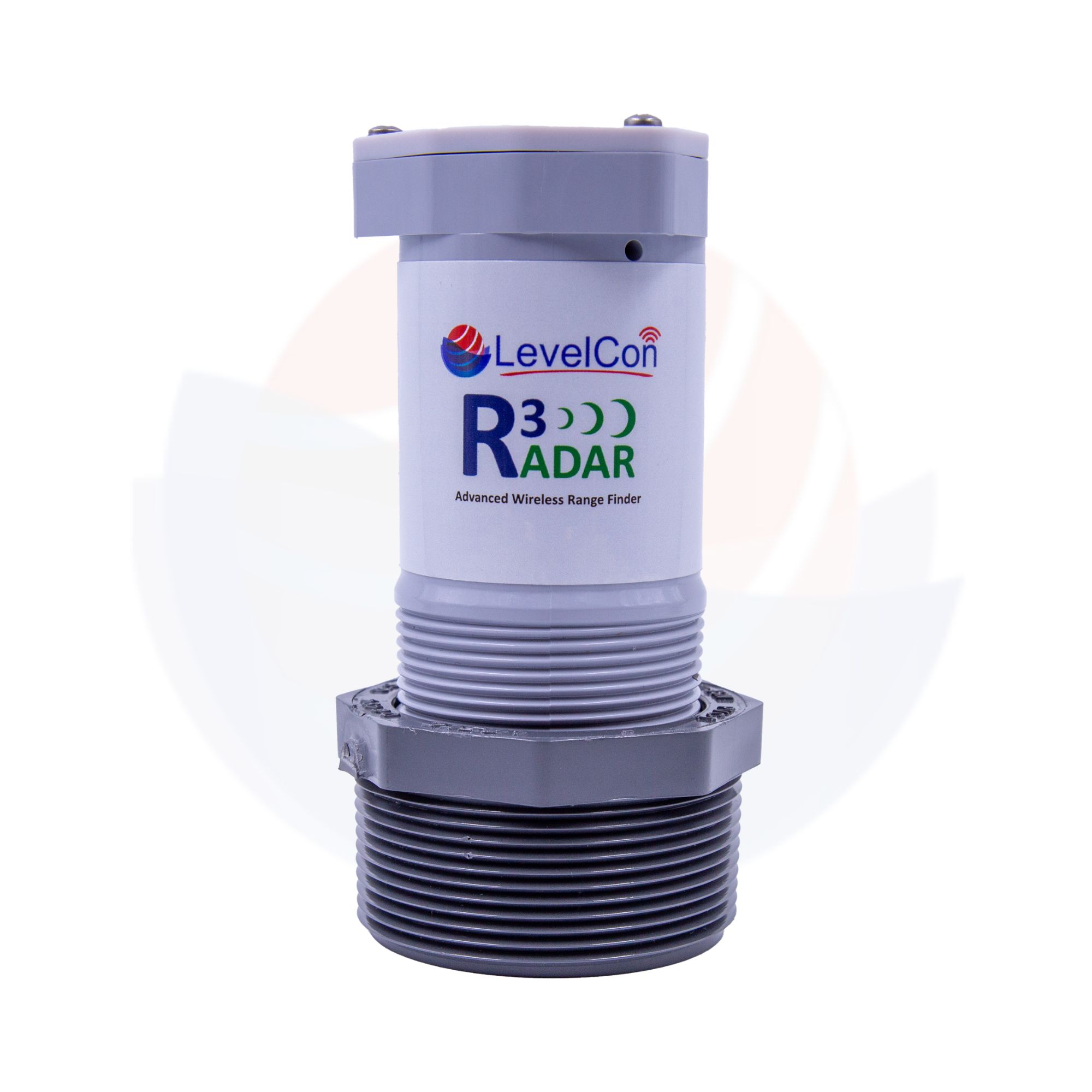

| Tank Connection: | 1.5” MNPT with supplied 1.5->2” PVC Bushing |
| CPU: | ARM® Cortex-M4 |
| Country of Origin | More than 50% assembled in the USA |
Warranty & Support
All our products come with a 1-year limited warranty and lifetime technical support. For any queries or issues, contact our support team.
